2 Ltr plating Plant 2 Beaker SS Body

2 Ltr plating Plant 2 Beaker SS Body

2 Ltr plating Plant 2 Beaker SS Body

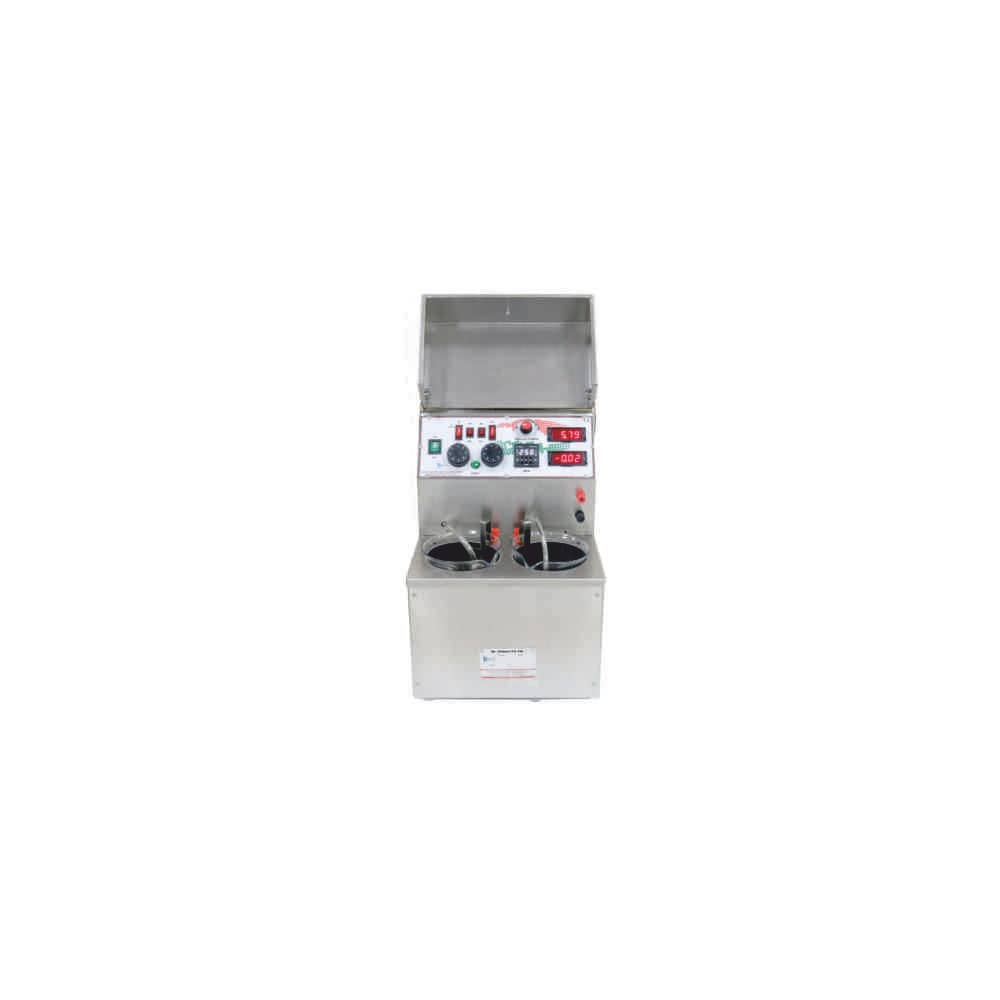

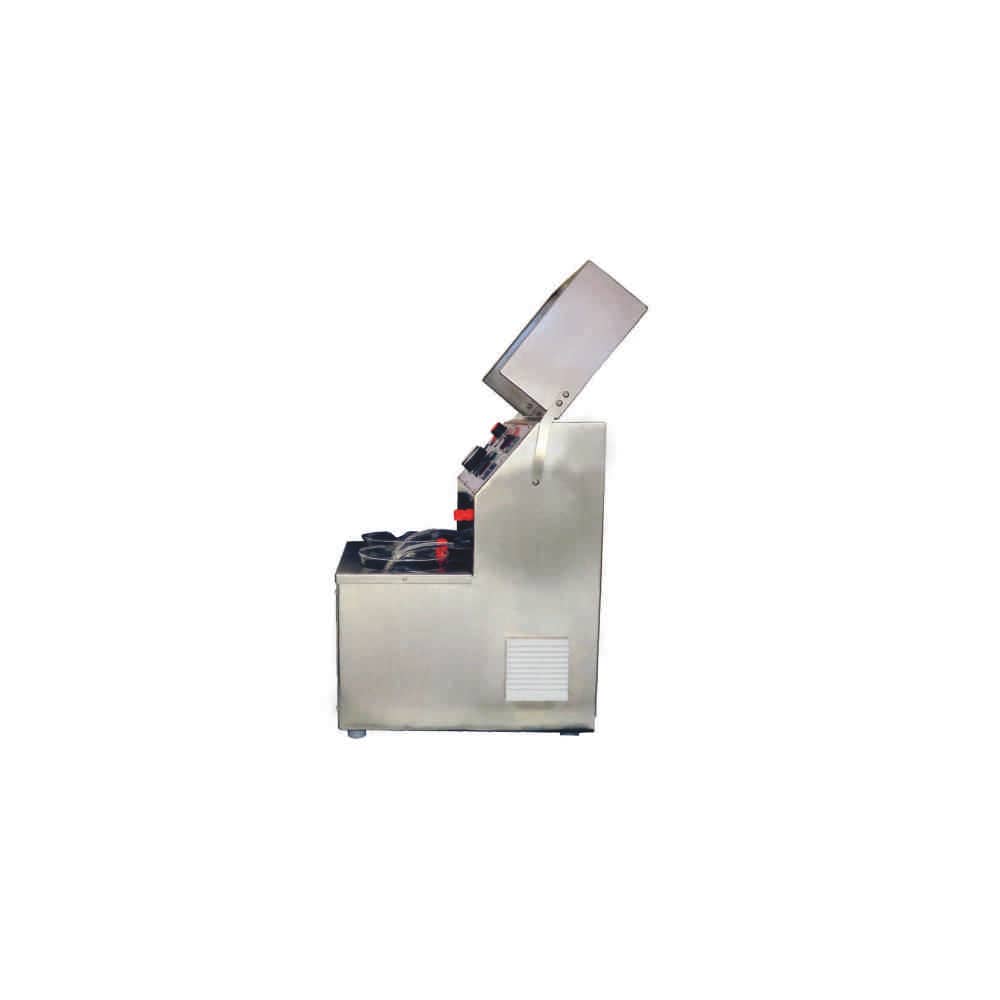

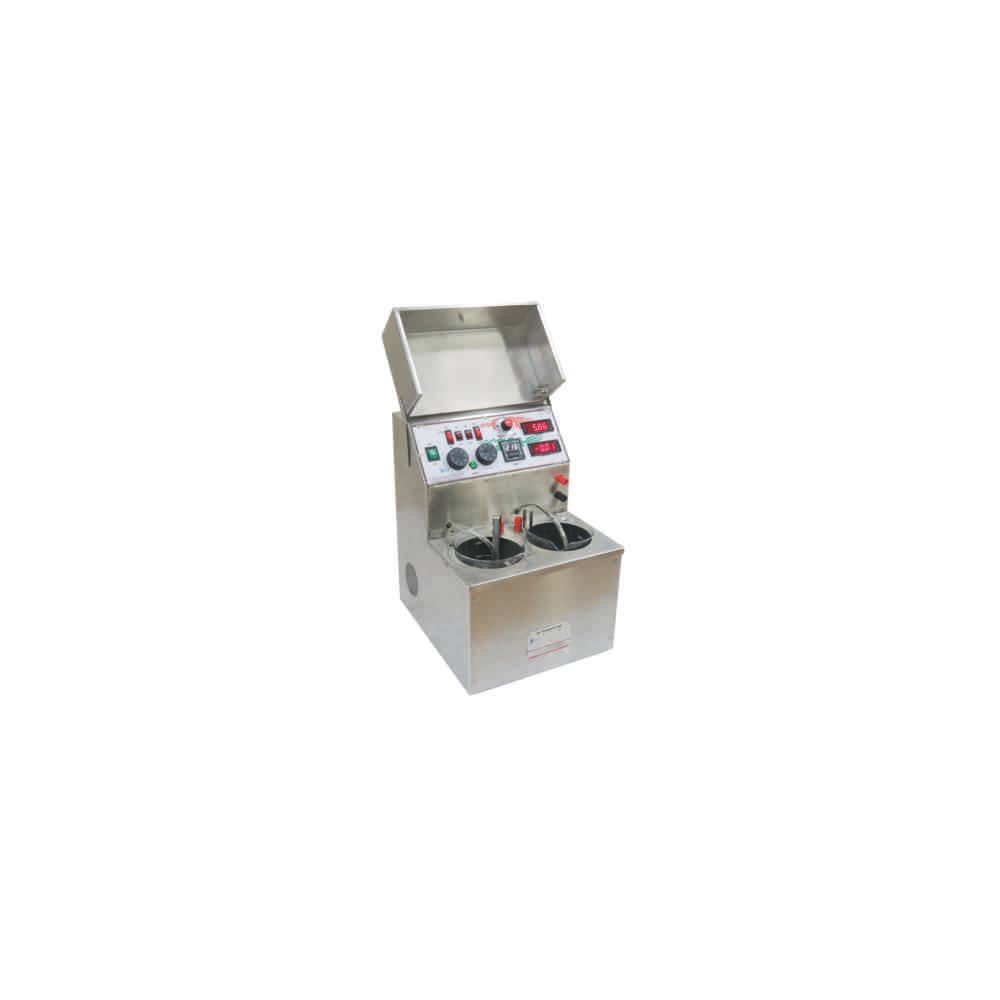

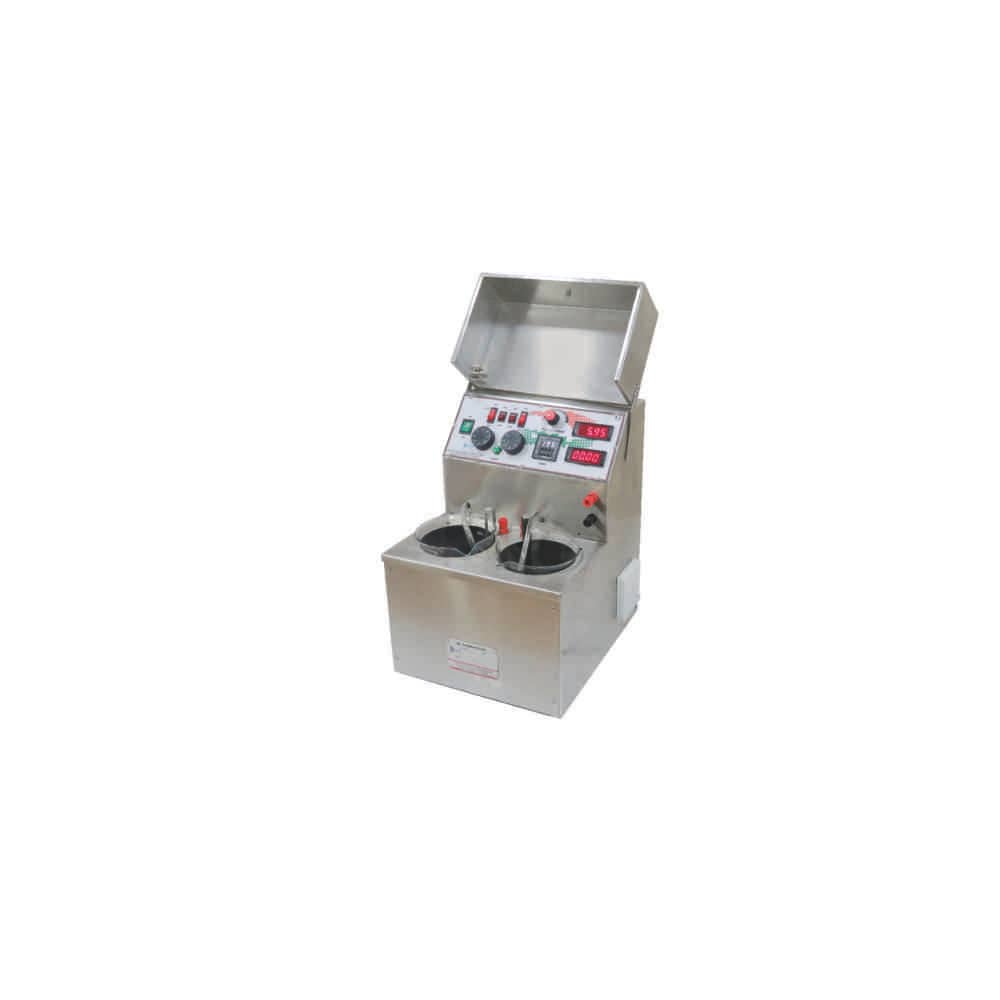

Gold plating is the process in which a new gold layer is coated over another metal by an electrochemical reaction. During the electrochemical reaction, a DC current gold ions from the gold bath solution are adhered onto the negatively charged piece or article. Gold itself is ductile and malleable. To enhance the properties of the articles, materials like Silver, Copper, and Nickel are introduced and gold plating is done to mimic the same appearance of gold. The plant is equipped with 2 beakers, separately powered for heating, with adjusting voltage from the potentiometer on the command panel with electronic protection and 2 magnetic stirrer motors to stir the solution properly in a beaker. The machine includes S.S. anodes for degreasing or Gold and Oxal anodes for Rhodium. The plant is a multi-purpose equipment which can replace more machines, saving space and cost.

More about this product


  • Capacity: 2 Litres CV (Constant Current Constant Voltage) Rectier with 12 V – 10 A
  • Equipped with 2 borosilicate Glass beakers of 2ltr Capacity Digital display for voltage and current
  • Voltage adjustment through potentiometer Separate magnetic stirrer for both beakers to stir the solution
  • Timer Controller to set process time up to 999 Seconds
  • Separate Temperature-controlling regulator for adjusting the temperature of both beakers
  • Provides Steady Voltage that gives desired result in the chemical processes being carries
