Induction Melting Furnace

Induction Melting Furnace

Induction Melting Furnace

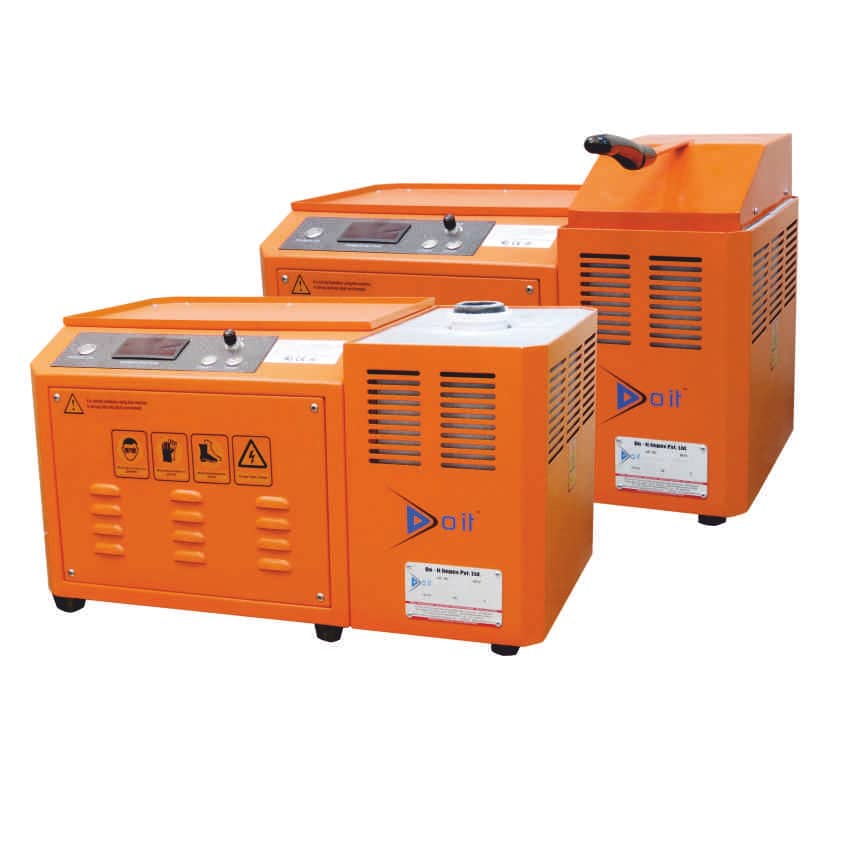

The Induction Melting Furnace is advanced melting equipment for gold, silver, copper, beryllium and other nonferrous metal melting. This furnace adopts big power medium frequency induction melting way, fast heating speed, electromagnetic stirring function to get liquid metal with more even temperature and composition.

More about this product

Features :

  • Melting of Non-Ferrous Metal Melting.
  • Apply IGBT technology, big output
  • Stable high efficiency.
  • With Various Protection as over heating
  • Safe and
  • Good
  • 100% Full load, 24 Hours continuous
  • Quick temp rising, electricity
  • Low melting Cost with High-Cost efficiency. Cabinet casing, compact design with small size
  • and low weight easy operation. Simple and convenient
CODE Induction Melting Furnace 1 Kg and 2 Kg
Input Power 220V/50~60Hz Single Phase
Output Power Around 3Kw
Suitable Metal Gold, Brass, Silver, etc.
Melting capacity 1 Kg                                                         2 Kg
Frequency 50/60Hz
Max. Temperature 1450° C
Water Cooling Running Water or Water Chiller
Net Weight 28 Kg                                                      30 Kg
Outline Size ( L x B x H ) 23″ x 13″ X 12″                                24″ x 13.5″ x 13″
Melting Speed 3~5 min
