Plating Plant 3 Ltr

Plating Plant 3 Ltr

Plating Plant 3 Ltr

The plating plant carries out the Plating process on articles using different types of Gold Carats such as 9kt, 12kt, 14kt, 18kt, 22kt, and 24kt and also carries out Rhodium plating. Degreasing, Activation, and multiple Rinsing, before Flash and Rhodium tanks are all placed according to the order of process and ease of operation and in controlled temperature value. Gold plating is the process in which a fine gold layer is coated over another metal by an electrochemical reaction. During the electrochemical reaction, a DC current gold ions from the gold bath solution are adhered on to the negatively charged piece or article. Gold itself is ductile and malleable. To enhance the properties of the articles, materials like Silver, Copper, and Nickel are introduced and gold plating is done it to mimic the same appearance of gold.

More about this product

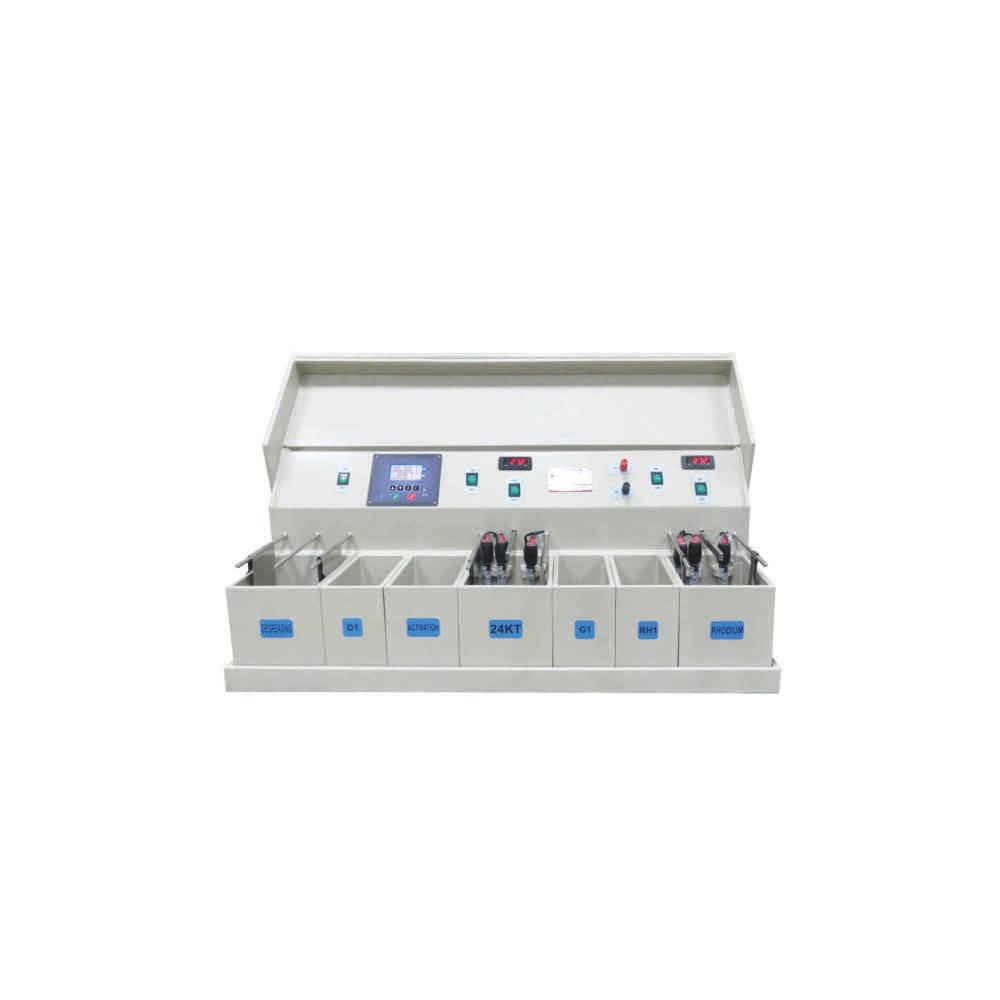

  • 3 Litres Polypropylene Plating Plant with
  • degreasing Bath, Activation Bath, Gold Plating
  • bath, and Rhodium Plating bath.
  • Timing and Voltage Controller with digital display.
  • Automatic Temperature Controller.
  • SS Anode for degreasing and Gold Plating bath.
  • Multi-metal oxide anode for Rhodium.
  • Voltage ramp, Automatic Timer, and Manual settings.
  • Convertible Hazitation for piece movement inside the bath.
